Custom sizes and materials are available. Send your drawing or flange details and we will quote.
可按客户图纸或规格定制,欢迎来图询价。
| Material / type材质 / 类型 | Typical use典型用途 | Typical temperature参考温度 |
|---|---|---|

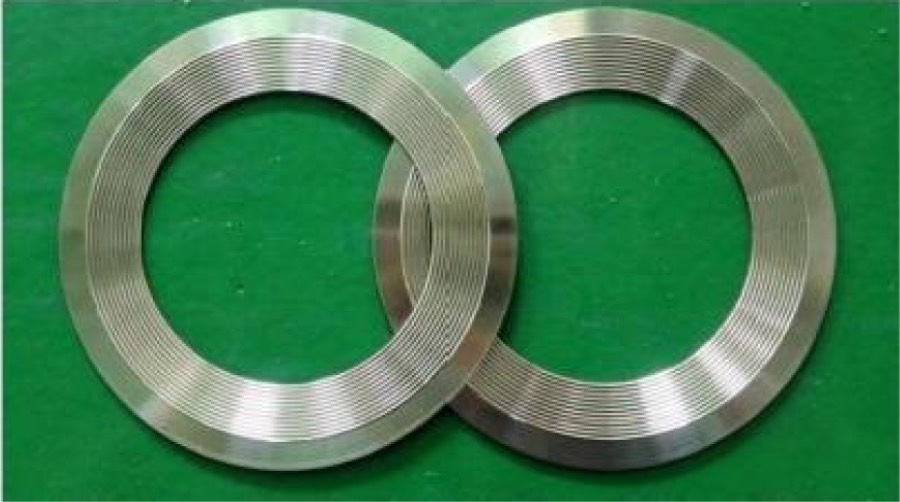

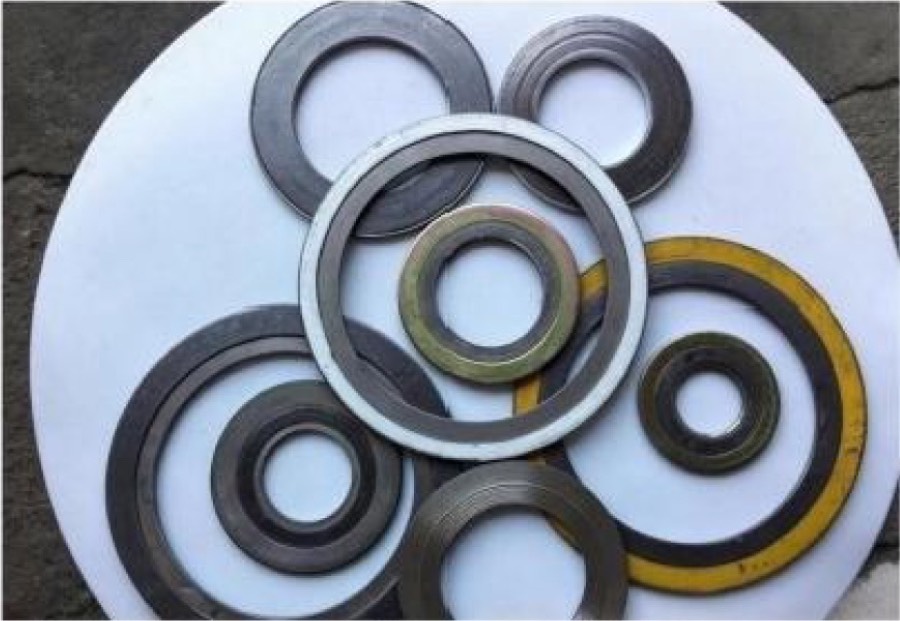

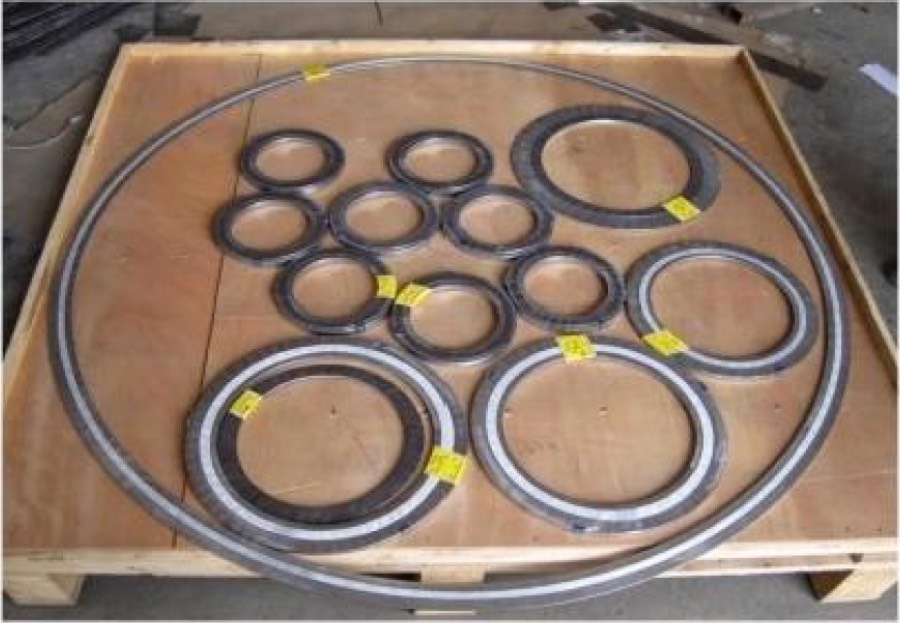

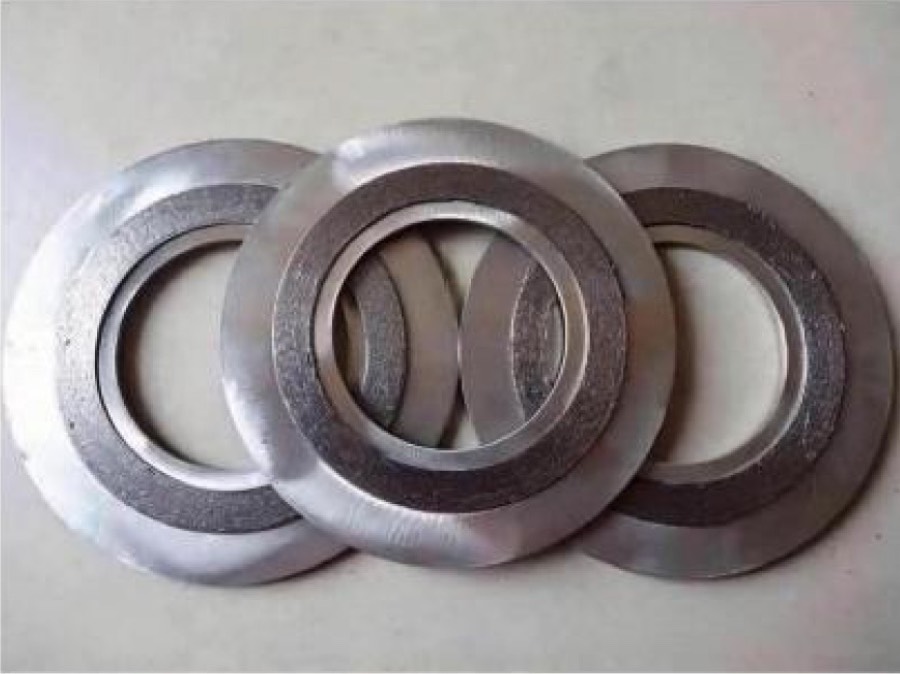

| Spiral-wound: 304/316L + flexible graphite缠绕垫:304/316L + 柔性石墨 | Steam, oil, hot water, general process flanges蒸汽、油品、热水、一般工艺法兰 | ≈ -200 to 450 °C (oxidising ≤ 450) |
| Spiral-wound: 304/316L + PTFE缠绕垫:304/316L + 四氟 | Acids, alkalis, corrosive chemicals酸、碱等腐蚀性介质 | ≈ -200 to 260 °C |

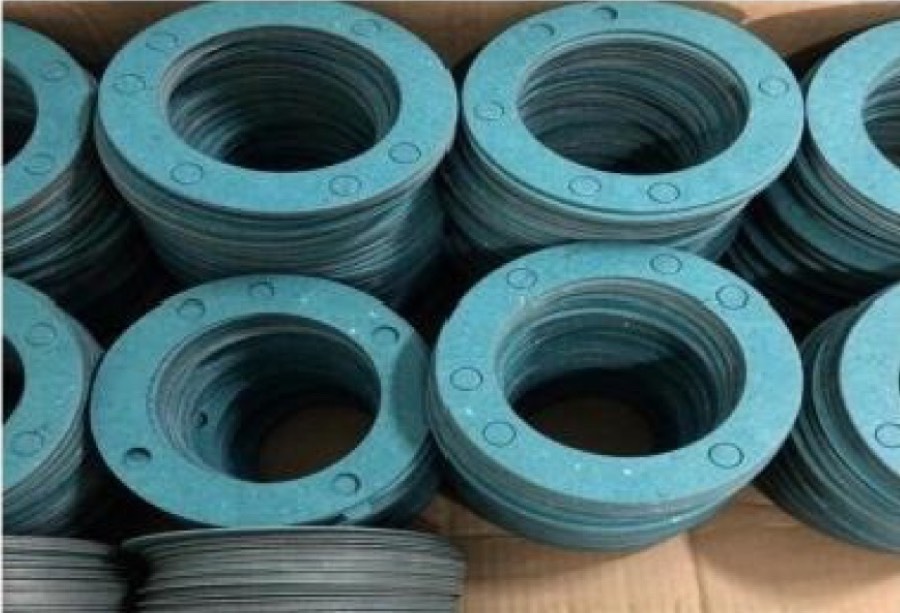

| Non-asbestos (NA) sheet gasket无石棉板垫片 | Water, steam, mild chemicals, low-pressure flanges水、蒸汽、弱腐蚀介质,低压法兰 | ≈ up to 350 °C |
| Expanded / pure PTFE gasket膨体 / 纯四氟垫 | Strong acids, food and pharma lines强酸、食品及医药管线 | ≈ -200 to 260 °C |
| Rubber (NBR / EPDM / NR / SBR) gasket橡胶垫(丁腈/三元乙丙/天然/丁苯) | Water, air, oil (NBR), hot water and weather (EPDM)水、空气、油(丁腈)、热水及耐候(三元乙丙) | ≈ -40 to 120 °C (varies by compound) |

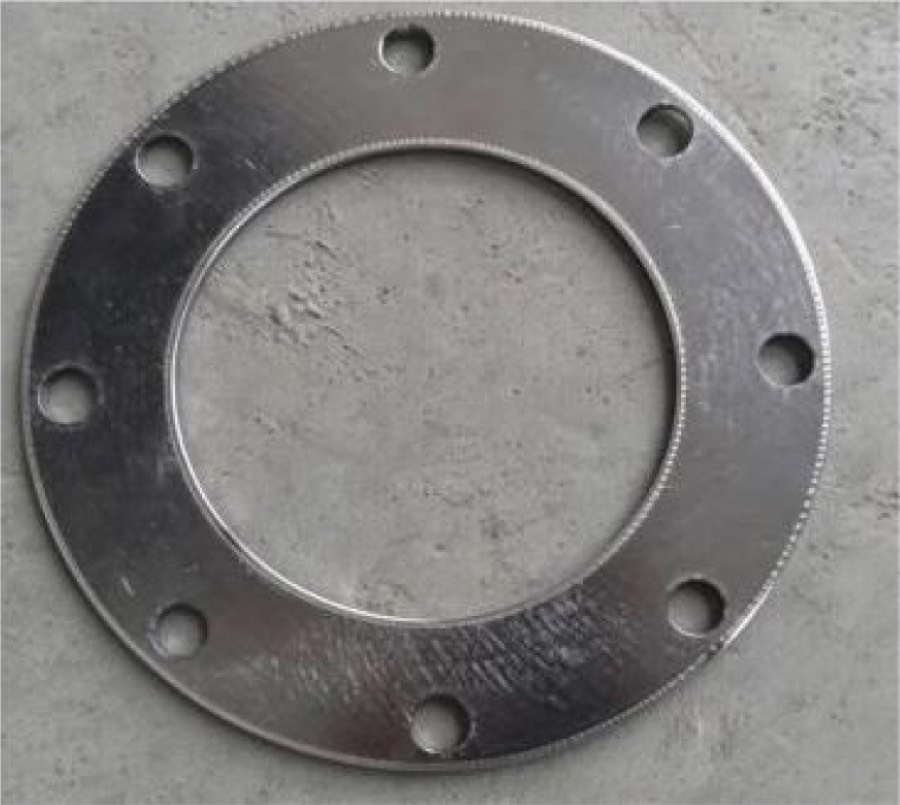

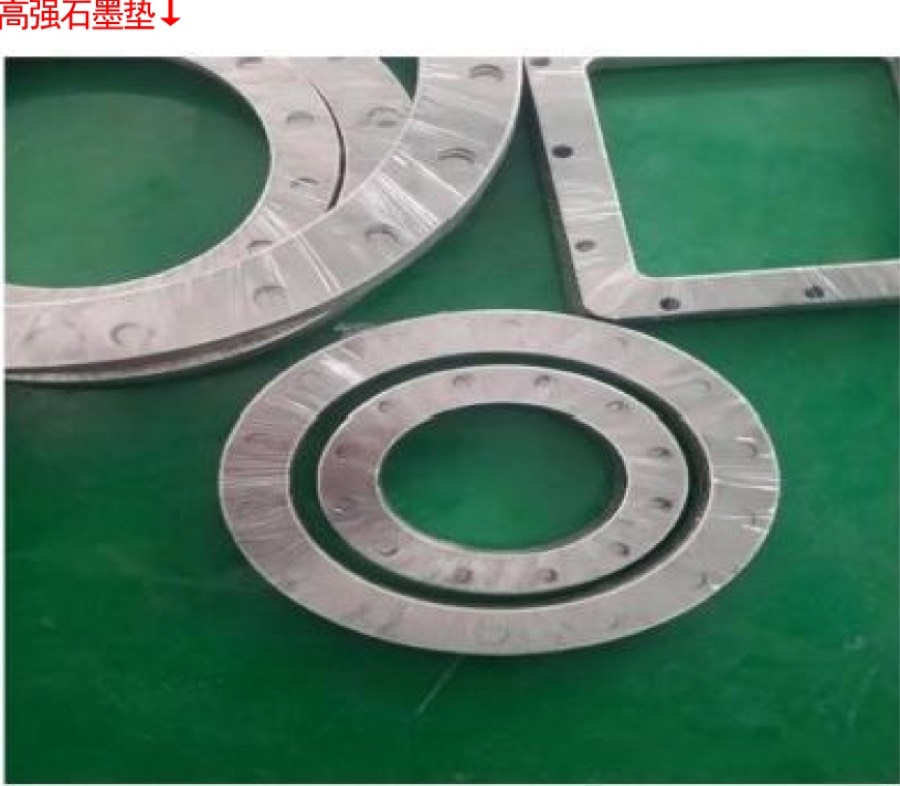

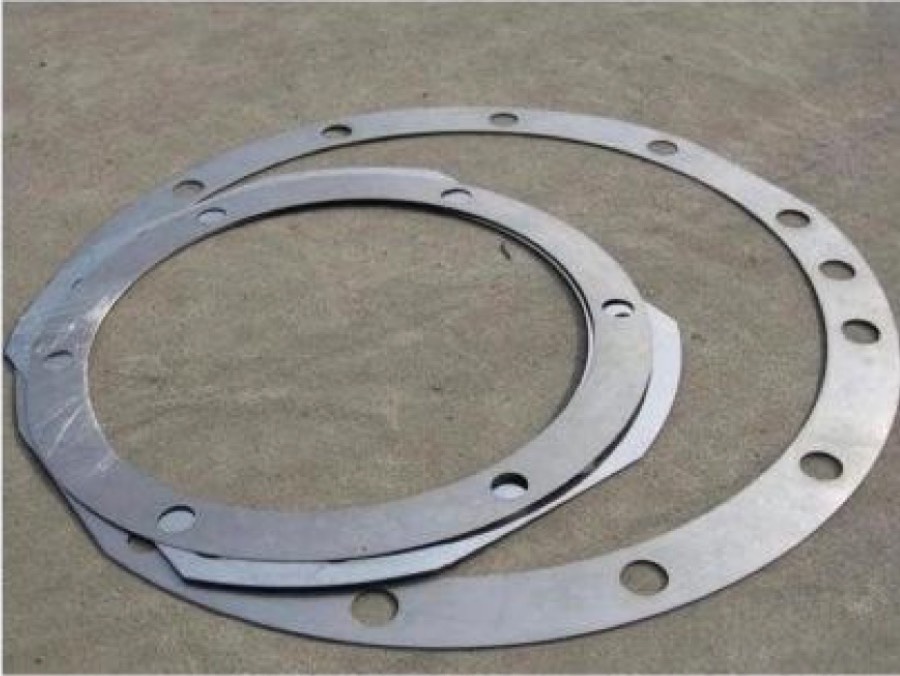

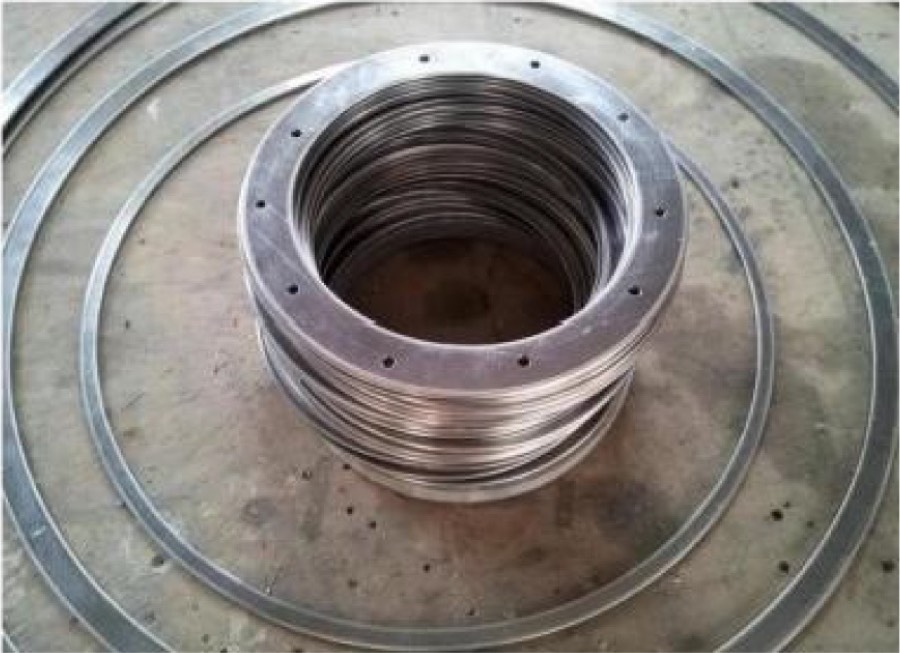

| Flat metal / graphite-reinforced gasket金属平垫 / 增强石墨垫 | High-temperature, high-pressure flanges高温高压法兰 | depends on metal and filler |
Temperature figures are typical industry reference values and depend on grade and design. We confirm the right material for your actual conditions when quoting.温度数据为行业常见参考值,具体取决于牌号和结构。报价时我们会按您的实际工况确认材质。
Refineries and petrochemical, power and boiler, pulp and paper, chemical, heat exchangers, pipelines炼油化工、电力锅炉、造纸、化工、换热器、管道
Flange standard and size (DN / NPS, PN or Class), medium, temperature, pressure, drawing or sample for non-standard shapes, quantity法兰标准及规格(DN/NPS、PN或Class)、介质、温度、压力、异形垫请提供图纸或样品、数量
Yes. Send a drawing, a photo with dimensions, or the old part and we will quote custom die-cut or machined gaskets.可以。请发图纸、带尺寸的照片或旧件,我们为您报价定制冲裁或加工垫片。
It depends on medium, temperature and pressure. Graphite filler suits steam and oil; PTFE filler suits corrosive media. Inner and outer rings protect the winding and centre the gasket. Tell us your conditions and we will recommend.取决于介质、温度和压力。石墨填料适合蒸汽、油品,四氟填料适合腐蚀介质;内外环起保护和定位作用。告诉我们工况,我们给出建议。
